What’s the difference between DYM’s new low-temperature light-curing device and traditional UV lamp technology?

I. Core Advantages of DYM’s New Low-Temperature Light-Curing System

1. Exciting low-temperature, high-intensity technology meets the invisible needs of dental patients for comfortable fillings and orthodontic restorations, enabling truly seamless treatment.

DYM’s LED light-curing system utilizes a 3000MW/cm² LED light source with a high power output of 10W, ensuring efficient curing while maintaining a temperature within the human body’s imperceptible range through an intelligent temperature control system. Our field test data shows that the heat generated during the curing process is only one-third of that of traditional mercury lamp systems, at approximately 30-40°C. This effectively avoids pulp irritation or resin deformation caused by high temperatures, significantly reducing patients’ heat sensitivity.

This system is particularly suitable for children, elderly patients, and those with pulp sensitivity. Oral clinicians report that the incidence of postoperative pain is minimal.

2. Precise Eight-Mode Operation

The DYM One-Second Curing Light features eight pre-set professional modes (such as Super Intensive, Progressive, and Comfort), allowing for customized operation for different dental projects and material properties.

Super Intensive Mode: Cures 2-5mm thick resin in 1 second, making it ideal for emergency restorations.

Progressive Mode: By gradually increasing light intensity (from an initial 100MW/cm² to 1500MW/cm²), it reduces material shrinkage stress and is particularly suitable for deep caries restorations in posterior teeth.

Comfort Mode: Utilizes pulsed light (20Hz frequency) to reduce patient discomfort and improve patient compliance by 30-40% in pediatric dentistry applications.

• The DYM Low-Temperature Curing Light is equipped with an optional 10mm fiber optic light guide, achieving approximately 98% uniformity in light intensity and 20-30% greater penetration than traditional light guides. This allows for faster light focusing, ensuring deep curing of complex tooth structures. High-temperature sterilization is also possible, effectively reducing the risk of infection.
• The 18650 ultra-long standby battery provides 800-1000 cycles of continuous use in high-power mode, eliminating the pain point of frequent charging for traditional devices.

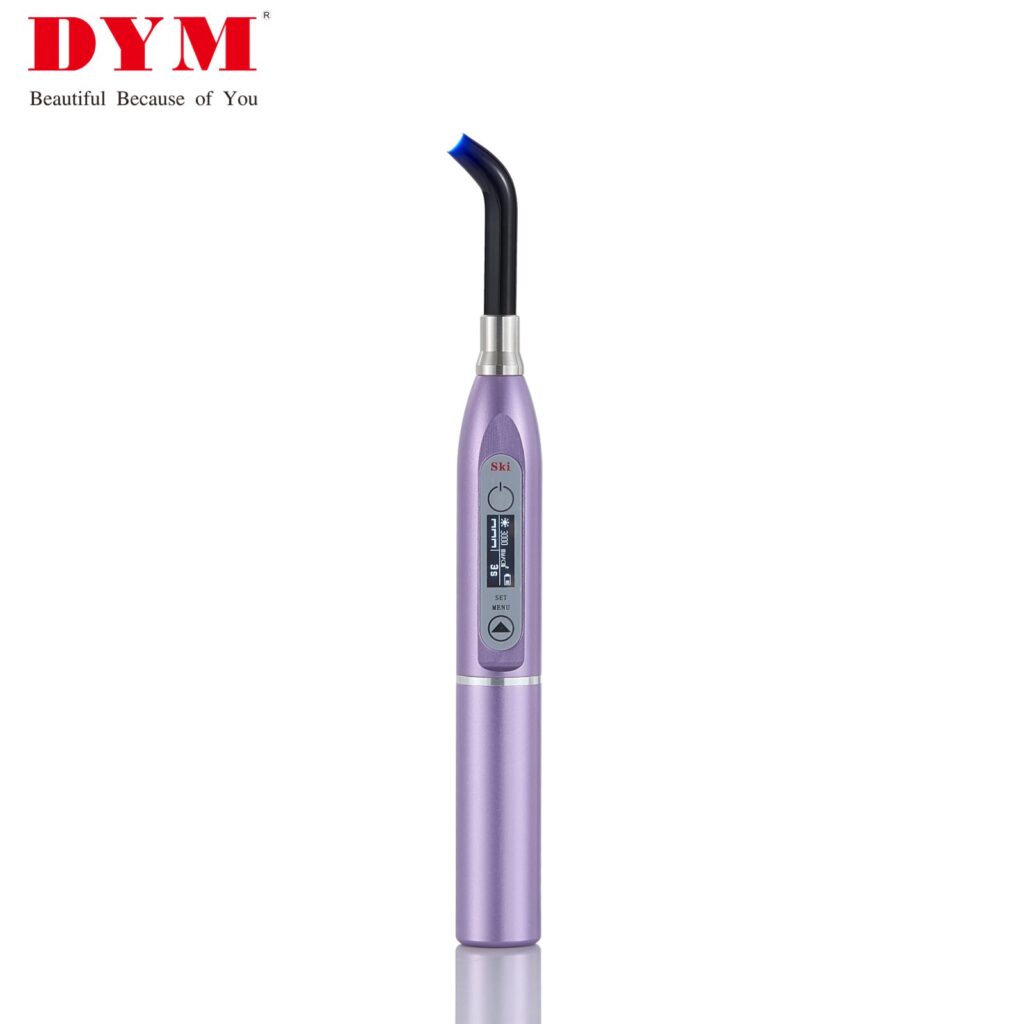

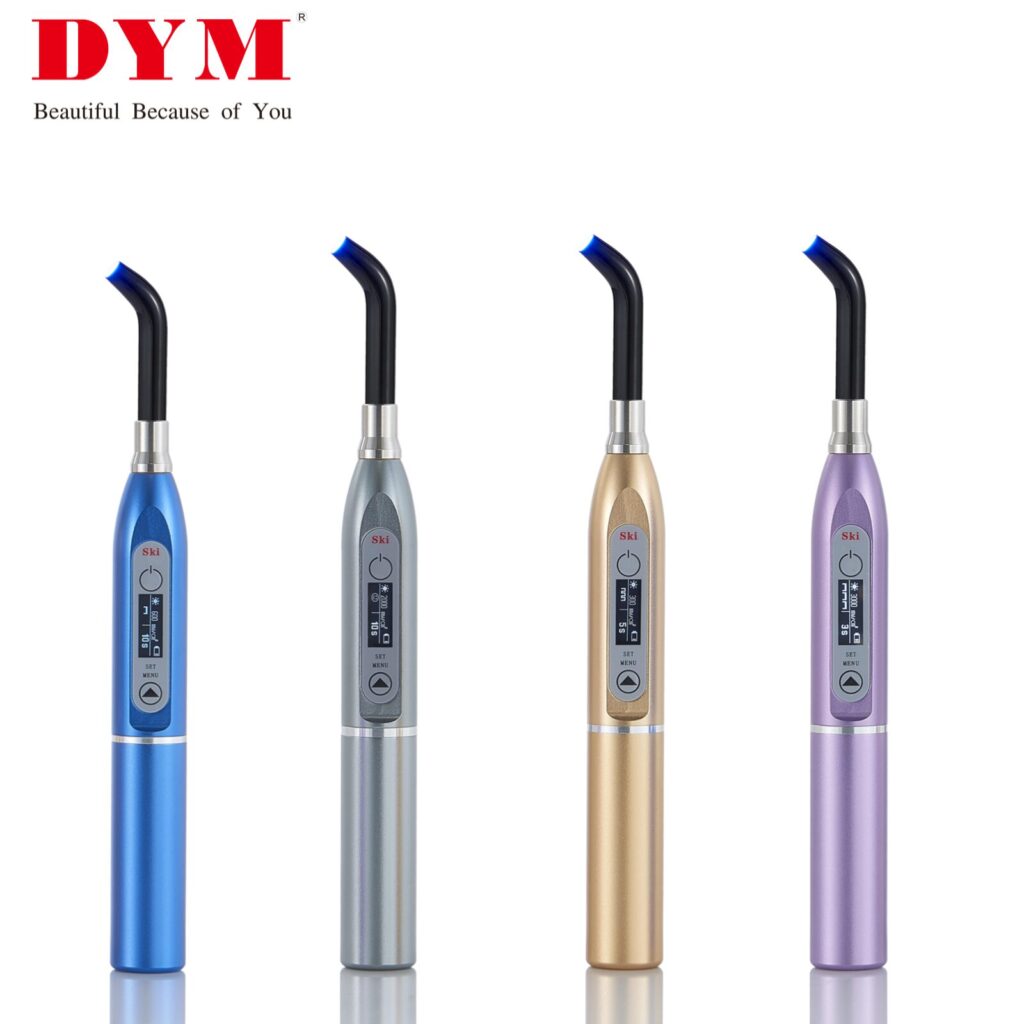

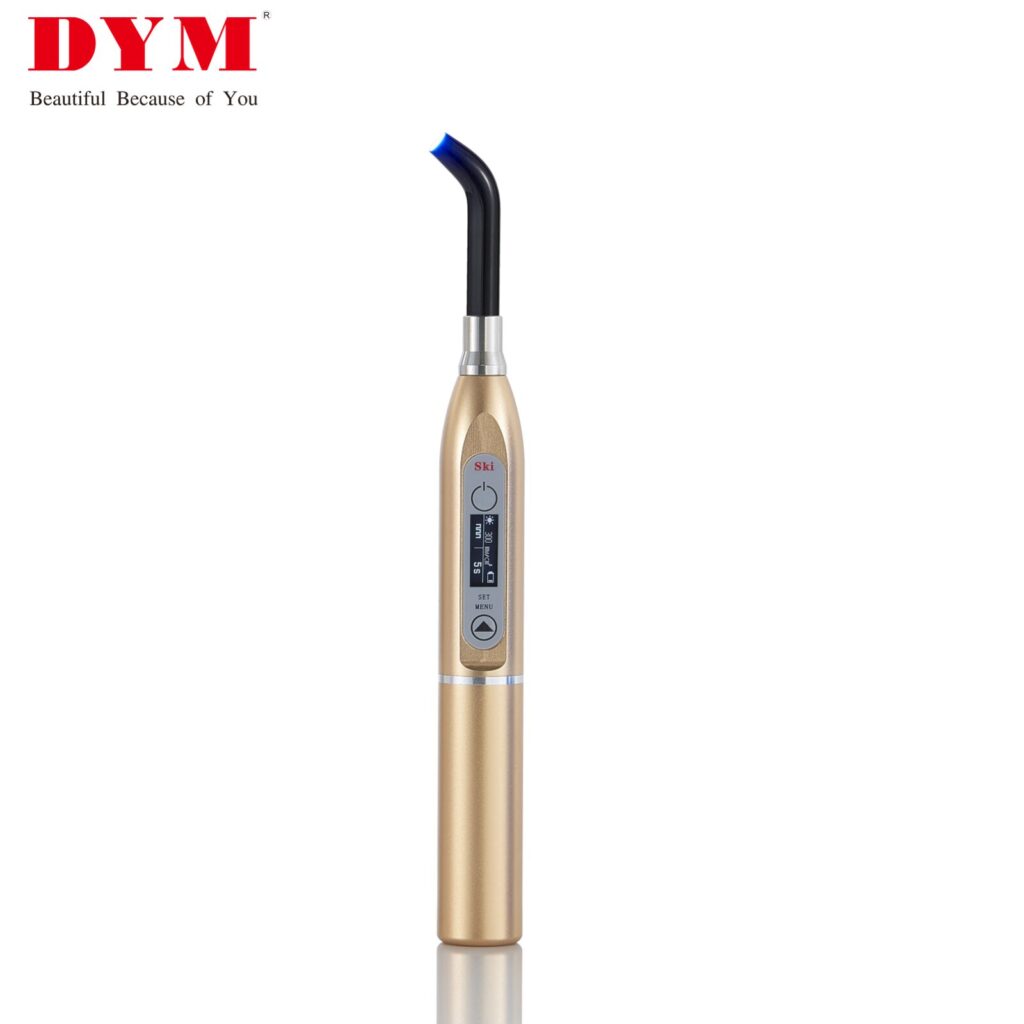

5. The DYM LED curing light’s housing is constructed of an aluminum alloy, creating a beautiful and durable finish that can be repeatedly cleaned with alcohol. Available in several trendy colors, including Brilliant Gold, Mountain Gray, Romantic Purple, and Starry Blue, it meets the aesthetic demands of modern dental clinics for high-quality dental equipment.

II. Scientific Breakthroughs in Low-Temperature Curing Lights

Low-temperature curing is an innovative form of curing technology. Its core focus lies in achieving efficient polymerization reactions at low temperatures through optimized material formulations and advanced light source technology.

Innovation in the photoinitiator system: A novel camphorquinone derivative is used as a photosensitizer. Its absorption peak closely matches the wavelength of the LED light source (450-480nm), enabling free radical polymerization at relatively low temperatures. Energy Transfer Mechanism: The monochromatic nature of the LED light source (full width at half maximum <20nm) ensures precise energy delivery to the photosensitizer, reducing ineffective heat radiation.

Material Compatibility: Resins designed for low temperatures, such as 3M, achieve a conversion rate of 92% at 37°C and a 58% reduction in microleakage compared to traditional materials. III. Technical Comparison of Low-Temperature Light Curing and Traditional Light Curing

III.Comparison Dimensions: Low-Temperature Light Curing (LED Technology) vs. Traditional Light Curing (Mercury Lamp Technology)

Temperature Control: Curing temperature ≤ 45°C, pulp temperature rise < 1°C [__LINK_ICON] Peak temperature reaches 80-120°C, pulp temperature rise often exceeds 3°C

Curing Efficiency: Cures 2mm of resin in 1 second, increasing cure depth by 40%. Curing takes 20-40 seconds, and efficiency decreases significantly with increasing material thickness.

Energy Consumption and Lifespan: Energy consumption is only 30% of that of a mercury lamp, and the LED lifespan exceeds 20,000 hours. Monthly power consumption of a single device exceeds 3,000 kWh, while the mercury lamp lifespan is approximately 2,000 hours.

Material Compatibility: Compatible with all mainstream dental resins, especially heat-sensitive materials (such as flowable resins and bioceramics). Can easily cause deformation in heat-sensitive materials such as PC and PET.

Environmental Benefits: Mercury-free, RoHS compliant. Contains heavy metal mercury, resulting in high disposal costs.

IV. Clinical Evidence and Expanded Industry Applications of Dental Curing Lights

1. Significant Results Validated by Dental Clinical Data

A comparative study conducted by the Affiliated Stomatological Hospital of Sun Yat-sen University showed that patients undergoing resin restorations using DYM LED light-curing devices experienced a significantly lower 24-hour postoperative pain rate (3.2%) than those using traditional light-curing devices (11.7%). In the field of 3D-printed temporary crowns and bridges, low-temperature light-curing technology has reduced the precision error of resin-based materials from ±0.15mm to ±0.08mm, and optimized the surface roughness Ra from 1.2μm to 0.6μm.

2. Cross-Industry Expansion of Dental Curing Lights

Beyond the dental industry, this technology has expanded into electronics manufacturing (such as flexible circuit board bonding), precision optics (camera lens packaging), bathroom restorations, and pet fillings. For example, after adopting DYM technology, one optical company saw its lens bonding yield rate increase from 85% to 99.6%, while also increasing production efficiency fivefold. After using DYM’s high-intensity LED curing light, a bathroom company’s product qualification rate for bathroom fixtures increased from 90% to 97%, effectively improving the factory’s qualified rate and reducing the company’s defective product failure rate. This, in turn, increased profits. Previously, they used a traditional curing light with insufficient illumination, which resulted in hidden cracks, peeling, and uneven repairs on repaired products. This led to frequent rework and scrapping, impacting regular shipments.

3. Future Directions for LED Curing Light Technology

Current research and development focuses on dual-curing systems (light curing + chemical curing) and AI-assisted light intensity prediction.

V. LED Curing Light Selection and Usage Recommendations

1. LED curing lights are suitable for the following applications in routine dental clinics:

Treatment of sensitive populations, such as those in pediatric and geriatric dentistry;

Aesthetic restorations (veneers, inlays), and implant bonding;

Post-processing and curing of digital restorations (3D printing, CAD/CAM). 2. Recommended Daily Operation Guidelines for LED Curing Lights

The light guides should be cleaned regularly (we recommend wiping them with anhydrous alcohol weekly) to prevent resin residue from affecting light transmission efficiency.

For deep caries restorations, a combination of layered curing and progressive curing is recommended, with each layer no thicker than 2mm. A gradual stacking method is recommended.

Regular equipment maintenance is recommended, and light intensity calibration is recommended every six months to ensure output power deviation is ≤5%.

The DYM low-temperature, high-intensity LED curing light is not only a product upgrade, but also an evolution of dental treatment concepts. We prioritize patient comfort and support dentists’ efficiency.

It is expected that low-temperature, high-intensity, one-second curing light will become the mainstream choice in dental restorations over the next three to five years. Dental clinics or dental institutions that introduce these upgraded devices can help improve customer satisfaction and increase revenue. We welcome colleagues in the dental field to visit our factory to discuss and share new trends in LED curing light technology for 2026.
