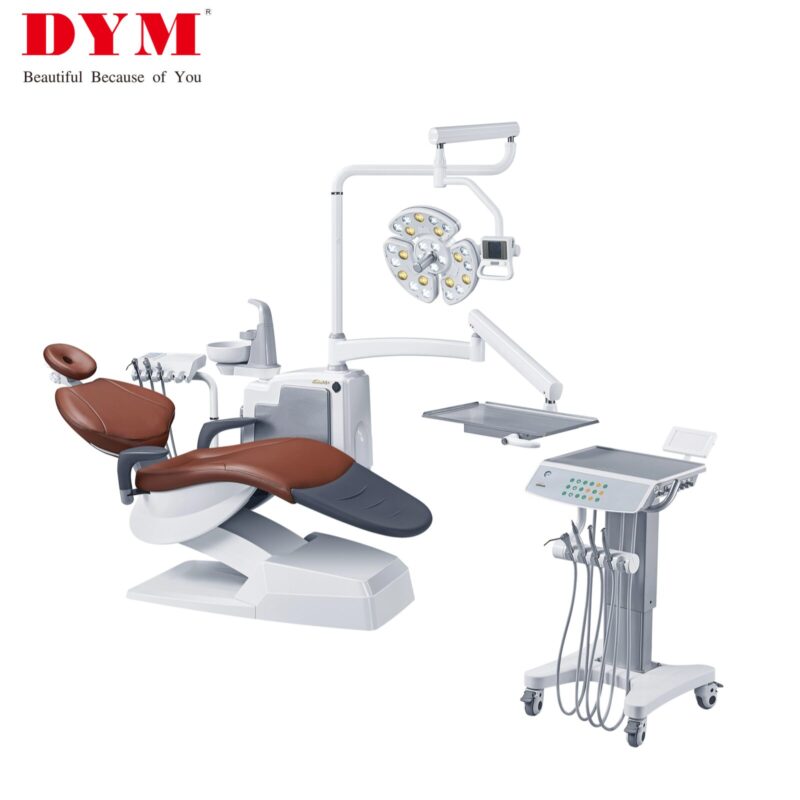

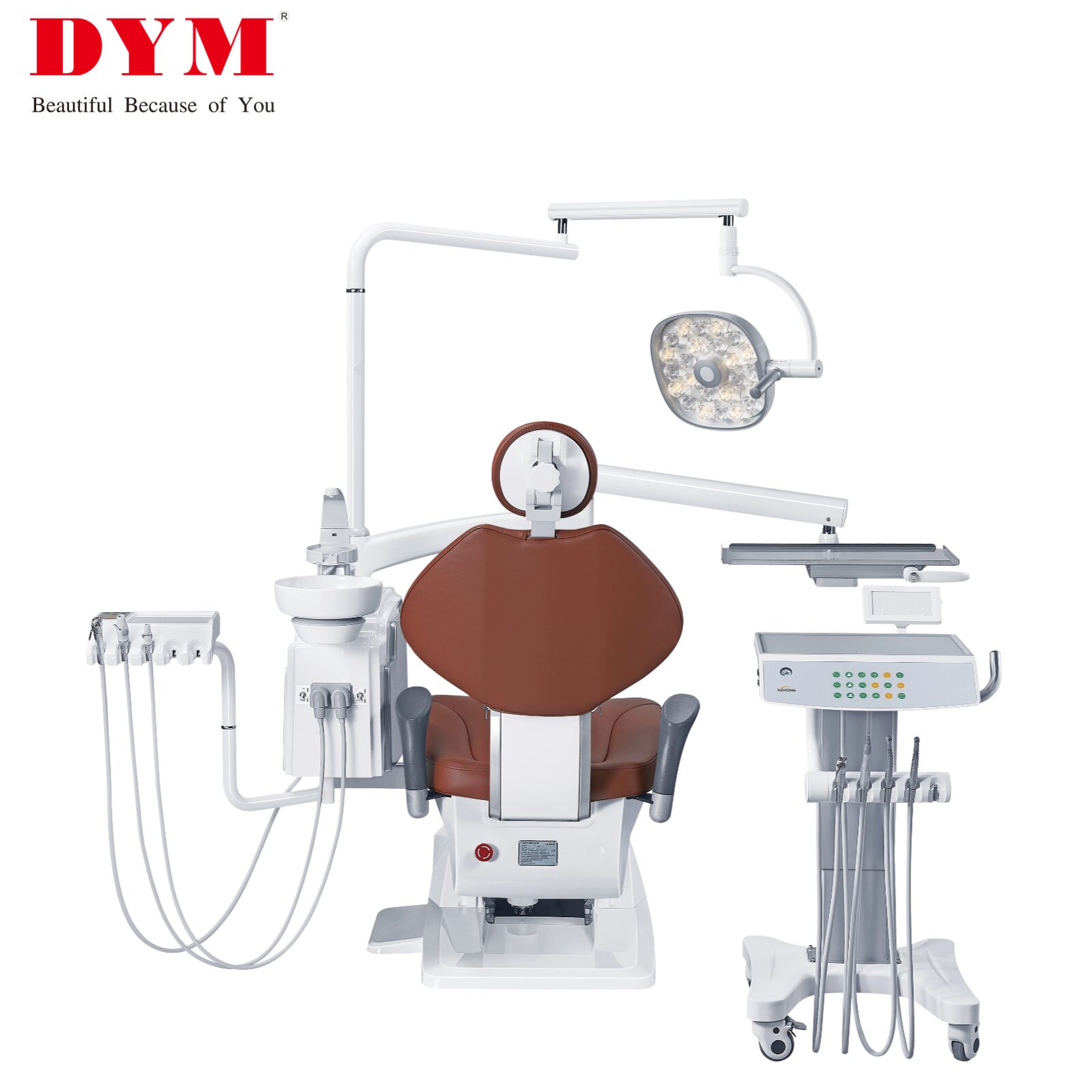

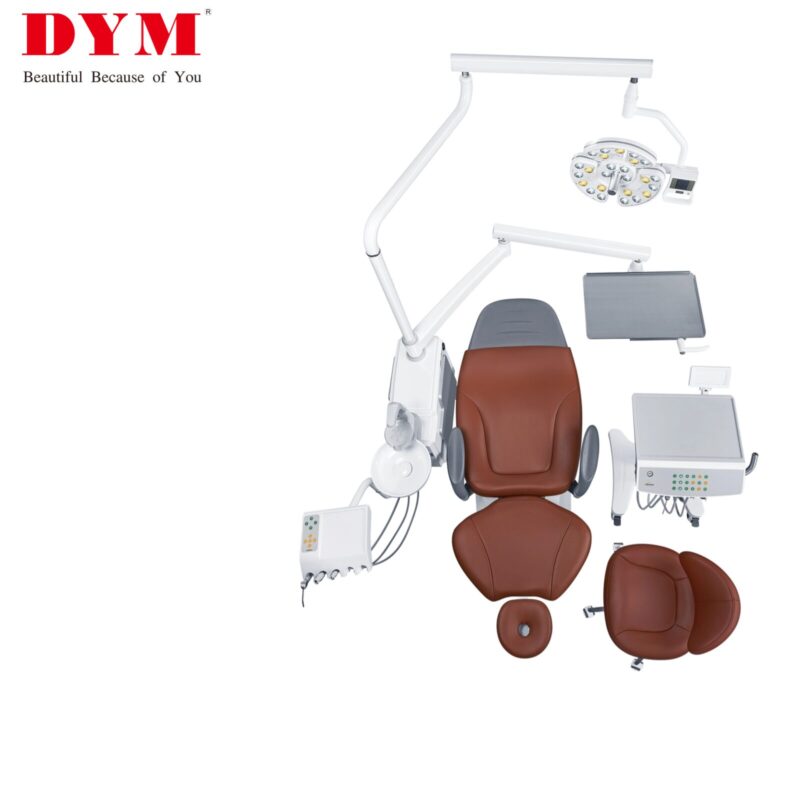

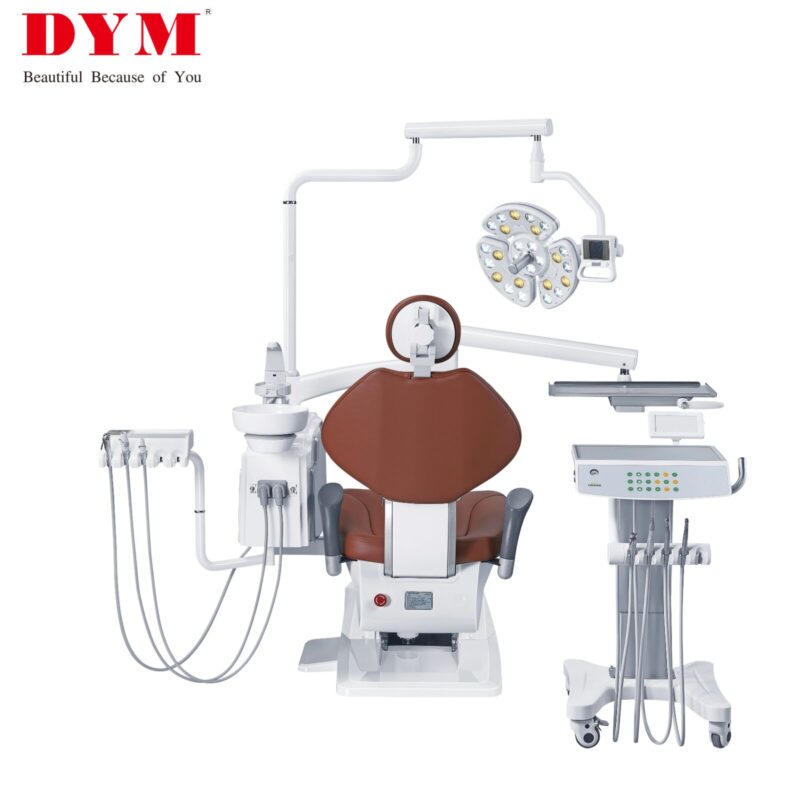

Luxury multi-functional Independent dental chair

Standard:

Mainboard 1set

Taiwan motor 1set

Dentist stool 1set

Double armrest 1set

Adjustable headrest 1set

Rotating spittoon 1set

Standard X-film viewer 1set

Luxurious LED sensor light(white and yellow light) 1set

Strong and weak suction tube 1set

3-way syringe(cold and hot) 2 set

Water heating and purified system 1set

Down-mounted instrument tray 1set

Assistant operating control system 1set

Luxurious multi-fuction foot swicth 1set

Auto-spittoon flush and cup filler control system 1set

2/4 holes handpiece tubing with stainless steel conncector 3 sets and so on



1.Basic Technical Parameters of the Whole Machine

1.1 Rated voltage: AC AC220-240V

1.2 Frequency: 50Hz, Input power: 800VA

1.3 Air supply pressure range: 0.55—0.75Mpa, flow rate>50L/min

1.4 The pressure range of water source: 0.25—0.50Mpa, and the flow rate: ≥2.5L/min

1.5 Ambient temperature: 10°C-40°C

1.6 Relative humidity: 30% – 80%

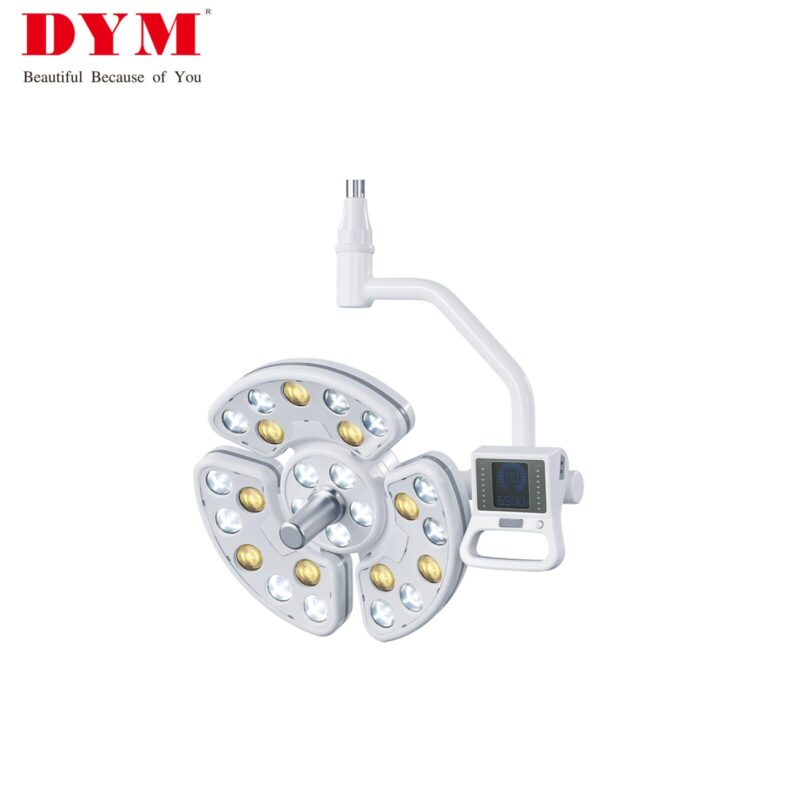

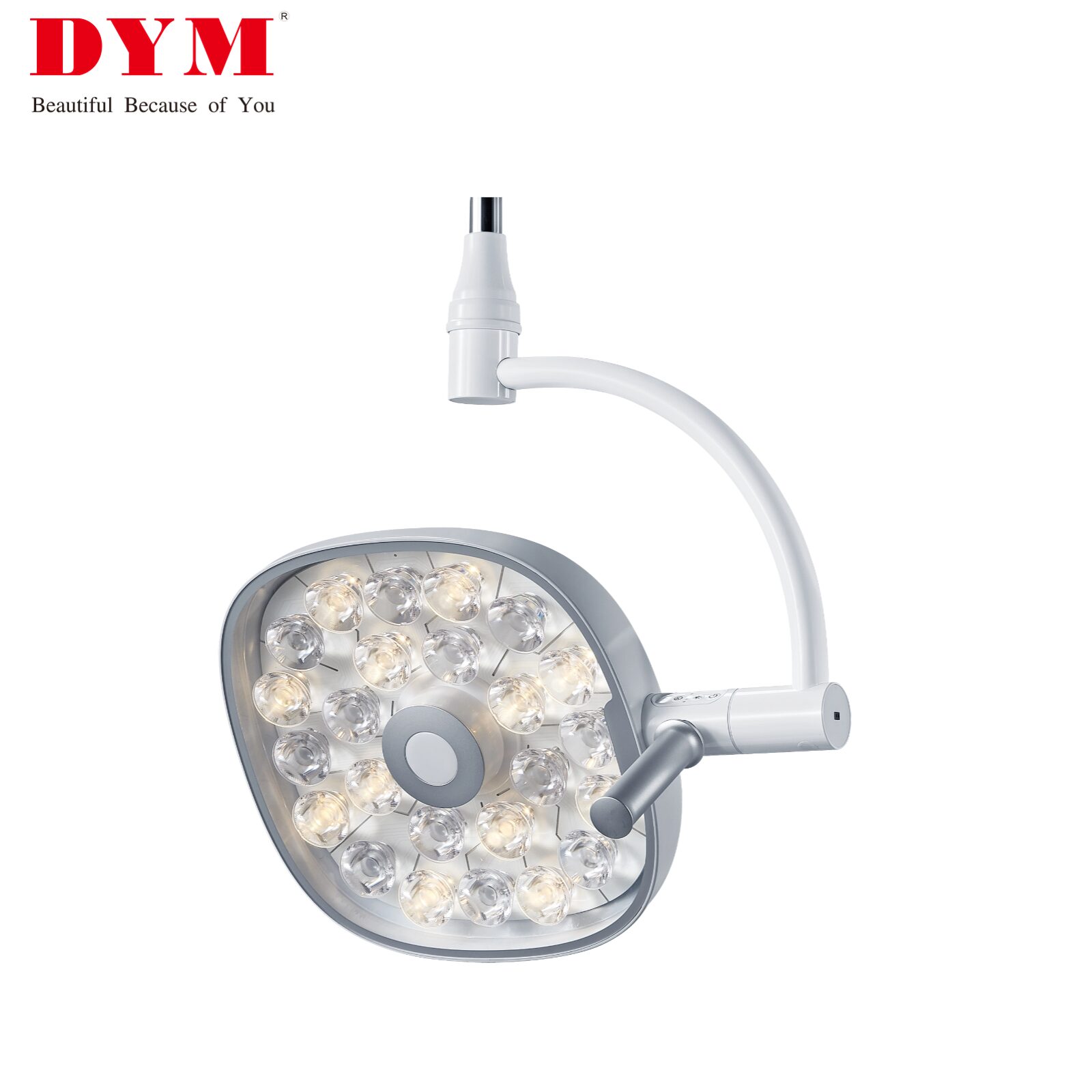

2.Intelligent Induction Anti-resin Curing Dental Light

★2.1 6-hole intelligent digital sensor LED light, yellow light/white light/mixed light conversion, induction stepless dimming, light anti-vertigo design, professional eye protection

★2.2 Lighting intensity 8000-30000 LUX; color rendering index Ra>90

2.3 Color temperature 4200-5200K (three adjustments)

2.4 The power supply is AC 12-24V





3. Intelligent Control System

★3.1 Fault alarm: If the electromagnetic valve in the equipment is disconnected or short-circuited, an alarm will

sound

★3.2 Intelligent quantitative water supply system, infrared + gravity dual induction, sense the water cup to

automatically

add water, repeated automatic water addition does not exceed the set water volume, effectively preventing

excessive water from overflowing the cup, and the cup holder is detachable for easy cleaning

3.3 Emergency brake safety device: Equipped with an emergency brake switch, press the brake button to cut off the

power of the whole machine immediately

4. Comprehensive Treatment Chair

★4.1 The whole machine adopts spray-painted chair frame, and the high-strength lifting arm has a strong sense

of comfort

★4.2 Patented hollow headrest: It can better support the patient’s head and is not easy to shake. More breathable,

long-term treatment without sweating

★4.3 The base is made of high-strength 12mm thick A3 cold-rolled steel plate, which is durable

★4.4 The seat cushion and backrest are ergonomically designed with compensation function, making patients feel

more relaxed during treatment

4.5 The length of the cushion: 126cm, the widest part of the cushion: 56cm, the height of the backrest: 43cm, the

widest part of the backrest: 62cm

★4.6 The seat cushion is made of environmentally friendly microfiber leather, which is soft, breathable, and has

good biocompatibility with human skin and wear resistance, sharp objects scratch the leather surface without

leaving obvious marks, anti-mildew and anti-bacteria, easy to clean and disinfect, fast detachable backrest for

easy maintenance

★4.7 Danish brand motor, safer, more gentle and comfortable to lift up and down the dental chair

4.8 Dimensions: total length*1845mm*total width 950mm, rise up to 83cm

4.9 The single armrest is convenient for supporting the hand, and it is convenient for the elderly or patients with

limited mobility to get on and off the chair

4.10 The maximum load-bearing range of the seat is ≤180KG

4.11 Service life: ≥10 years

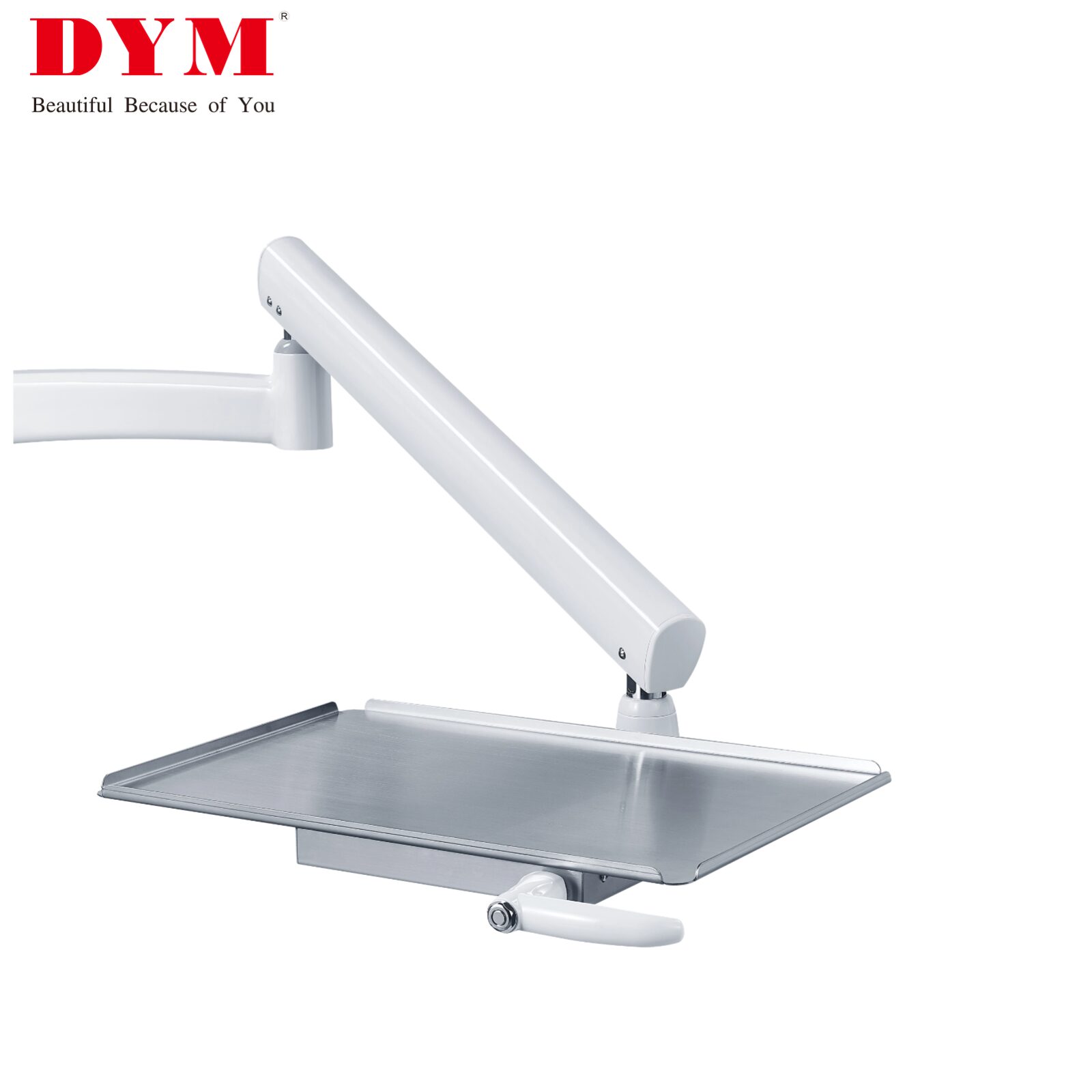

5. Liftable Trolley Instrument Tray

★5.1 Trolley instrument tray: The large-area tool table can place more tools needed for treatment. The handle

of the tool tray is designed in a square shape to avoid pulling the doctor’s clothes during use. The stainless steel

handle is durable and can be sterilized for safer use

5.2 Tool table: length: 45cm, width: 30cm, equipped with a three-way syringe with a stainless steel handle,

equipped with a detachable high-temperature-resistant and sterilized silicone pad

5.3 The design of the large card position makes it easier to put the handpiece into the hanger, which can

effectively prevent the handpiece from crashing

5.4 Independent water and gas control system double process treatment: two high and one low handpieces

are independent three water and gas control systems, which do not interfere with each other. Compared with

traditional control systems, the three systems work independently, with uniform load and longer service life

5.5 Multi-function button panel, control patient chair movement, sputum flushing water supply, film viewing

light, oral light, memory position and other functions

6. Side Box Body

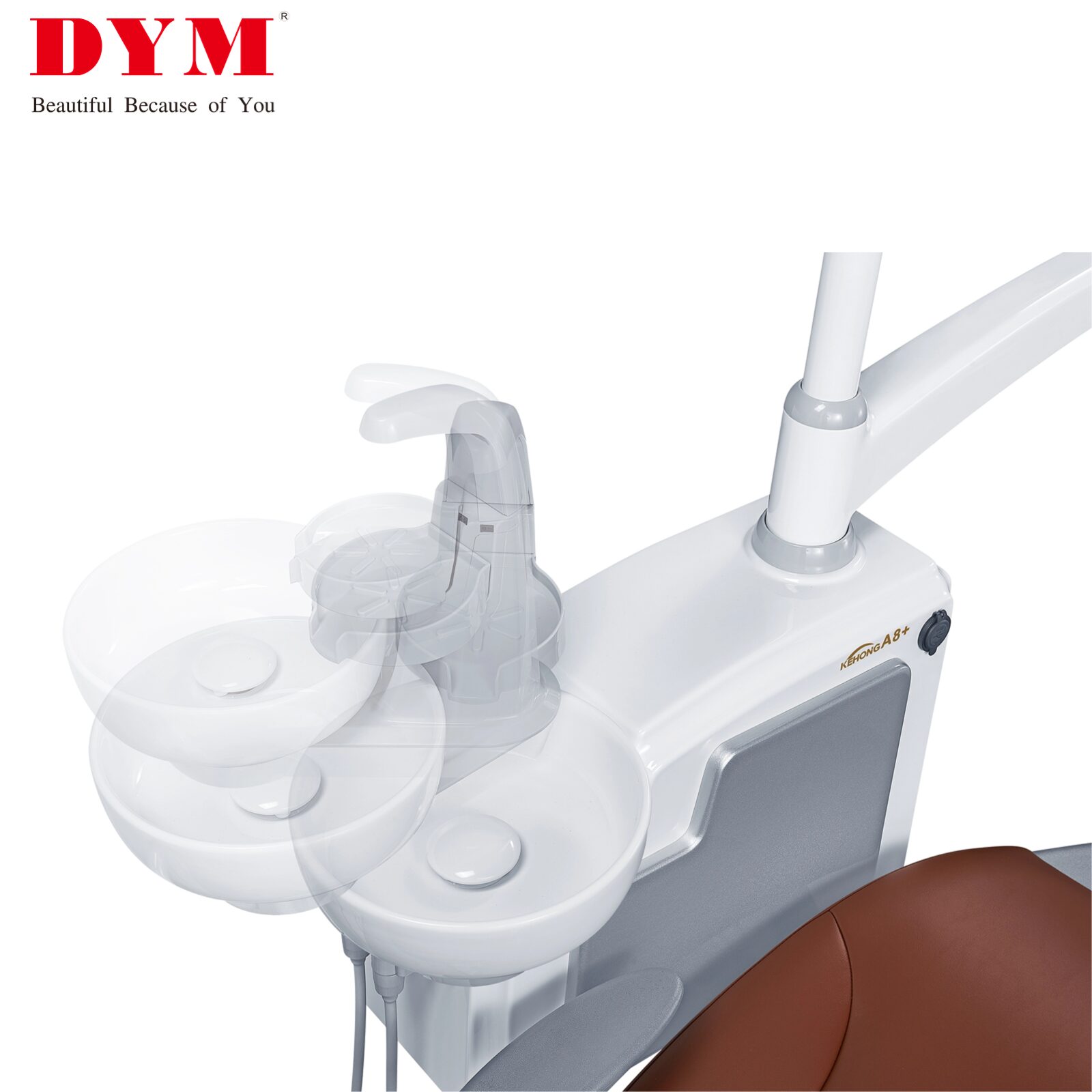

★6.1 Detachable rotating spittoon, convenient for patients to spit, and the frosted glass material is more

convenient for cleaning

6.2 The side box can be rotated 75 degrees, which is convenient for four-handed operation. The shell is made

of ABS engineering material, which is beautiful and durable, and keeps the environment inside the machine

clean and tidy

6.3 The connecting head is small in force, light in weight, and strong in stability of the dental chair

★6.4 The layout of water, gas and electricity is separated independently, the structure is clear, the side door

of the box is easy to open, and it is convenient for maintenance

6.5 Equipped with a mouthwash heating system, the water temperature is 40°C±5°C; equipped with a water

purification system

6.6 The outlet of the sputum flushing tube is higher than the spittoon, which meets the standards of ISO and

Food and Drug Administration

6.7 Configure independent strong suction system and weak suction system

6.8 600ml water storage bottle, thickened bottle mouth design, more durable, enlarged bottle mouth for easy

filling of pure water

★6.9 Automatic constant temperature water heater with anti-dry function (24V/80W)

★6.10 Equipped with high-quality water and gas pipelines, the pipe is thicker, excellent resilience, high

temperature and high pressure resistance, strong frost resistance, and can recover quickly after bending.

Excellent resistance to acid and alkali corrosion, effective use for up to eight to ten years

6.11 Configure the USB charging interface

7. Multifunctional Foot Controller

7.1 While satisfying the doctor’s long-term continuous work comfort, it incorporates multiple dental chair

control functions to reduce the chance of hands being contaminated by touching the device, improve work

efficiency

7.2 Control dental handpiece working status, control independently handpiece water, control seat lift, control

backrest to front/back, control oral light switch and control water supply for water cup

8. Multi-function Assistant Control Panel

8.1 Configure a three-way syringe with a stainless steel handle, configure a set of strong and weak suction

handle

8.2 Configure the multi-functional assistant control panel, including spittoon control button, water

supply control button, treatment chair up and down movement button, treatment chair backrest

front and back movement button, mouthwash heating button, oral light switch button

9. Floor Box

9.1 Enclosed power supply, clear structure, in accordance with European safety standards, moisture-proof,

dust-proof, splash-proof, and electromagnetic interference-proof, exposed wires are in line with

human body safety voltage

9.2 Automatic pressure relief to prolong the life of the pipeline

9.3 Moisture-proof and splash-proof, anti-electromagnetic interference, improve the durability of the

power supply of the whole machine

9.4 Built-in floor box design, the water, gas and electric unit is connected to the dental chair, hiding all

pipelines, clean and hygienic

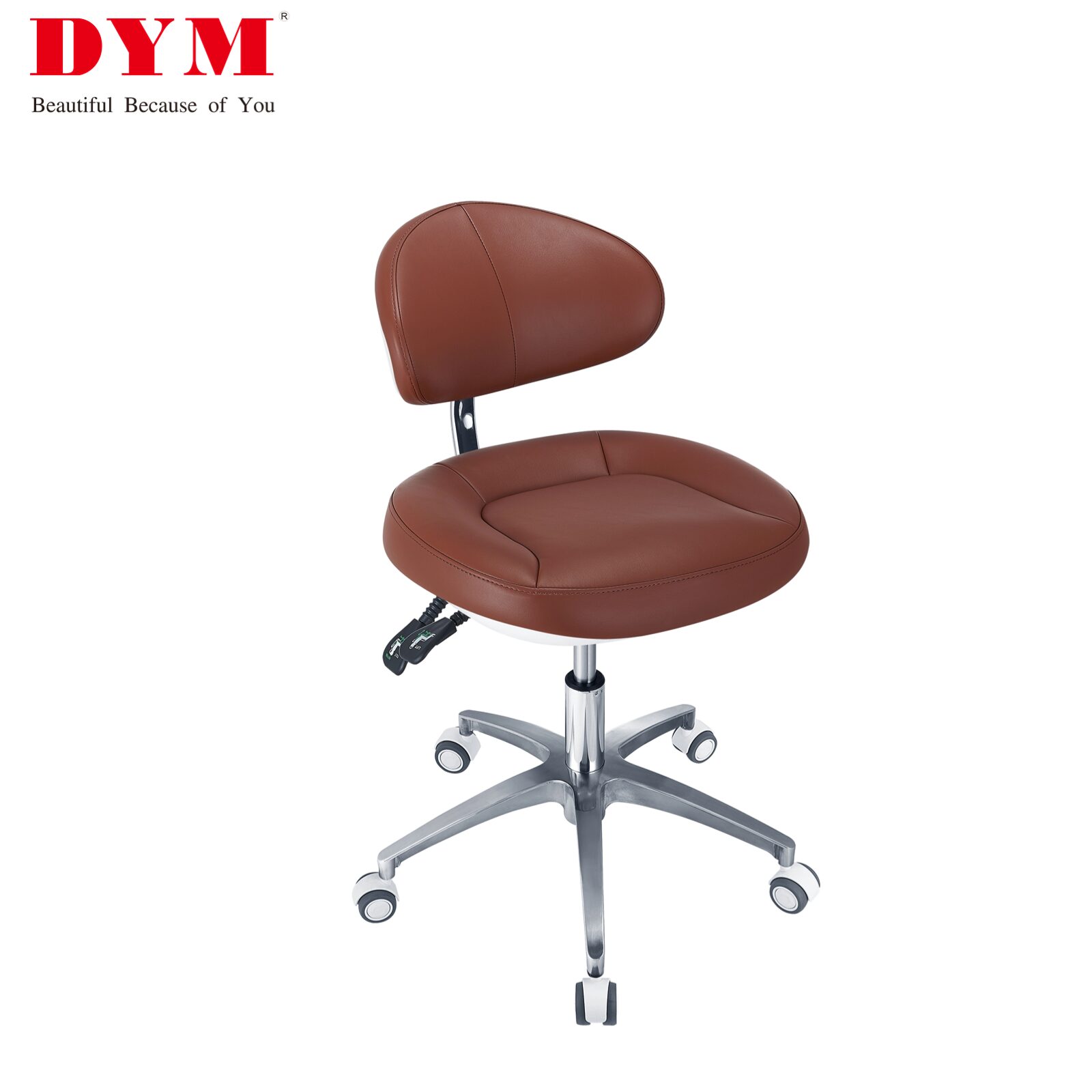

10. Doctor Chair

10.1 Equipped with ergonomically shaped saddle chair, the chair can be adjusted up and down, and the

back of the chair can be adjusted forward and backward

10.2 The casters adopt silent large wheels, which are durable and not easy to break

10.3 The doctor’s chair lifting range: 490mm-610mm
