Original price was: $1,588.00.$1,470.00Current price is: $1,470.00.
1.USB Charging Connection
2.Thicken chair frames with two treatment processes(painting and electroscopes
3. 4 hole Anti-resin Curing Oral Lamp
4. Automatically water supply
5. Stainless steel multi function foot switch
DYM patented oral lamp
Intelligent sensor anti-resin curing oral lamp is our patent product. Tradition curing light will fast-curring resin so
that it will be detrimental to operation by dentist. When dentist use curing light, our oral lamp can anti-resin curing,
dentist have more time to operation. Up to now, the experiment has verified the induction switch 150.000 times,
the induction has no attenuation, the light source has no dead breads, and the electronics have no faults.
1.Color rendering index more than 90
2.Six-speed adjustable illuminance, MAX 30000, min 5000
3.In the anti-curing mode, the color rendering index can still reach more than 90

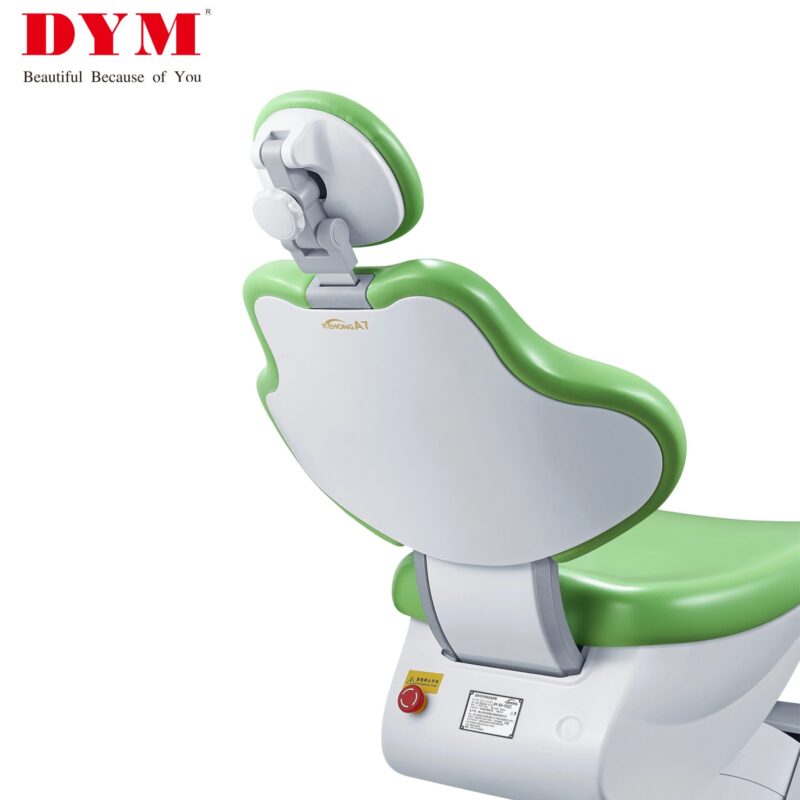

DYM patented headset
The Headrest is a patent product adopting ergonomic theory.The design is comfort, functional and user-friendly
sytems and 90′ roattion adjustment.Ventilate freely to prevent the patient sweat when lay long time in the headrest
1.1 Rated voltage: AC AC220-240V
1.2 Frequency: 50Hz, Input power: 800VA
1.3 Air supply pressure range: 0.55—0.75Mpa, flow rate>50L/min
1.4 The pressure range of water source: 0.25—0.50Mpa, and the flow rate: ≥2.5L/min
1.5 Ambient temperature: 10°C-40°C
1.6 Relative humidity: 30% – 80%
2.1 4-hole induction LED light, induction stepless dimming, light anti-dizzy design, professional eye protection
2.2 Lighting intensity: 8000-25000 LUX, color rendering index Ra>90
2.3 Light color adjustment: yellow light/mixed light/white light
2.4 Power supply: AC 12-24V
3.1 Fault alarm: If the electromagnetic valve in the equipment is disconnected or short-circuited, an alarm will sound
3.2 Emergency brake safety device: Equipped with an emergency brake switch, press the brake button to cut off the
power of the whole machine immediately

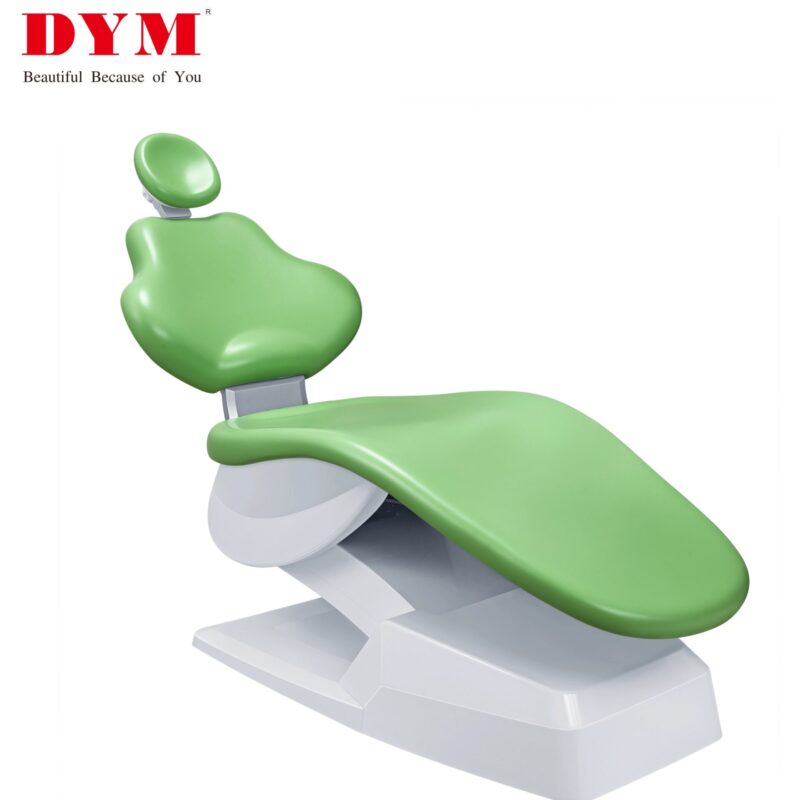

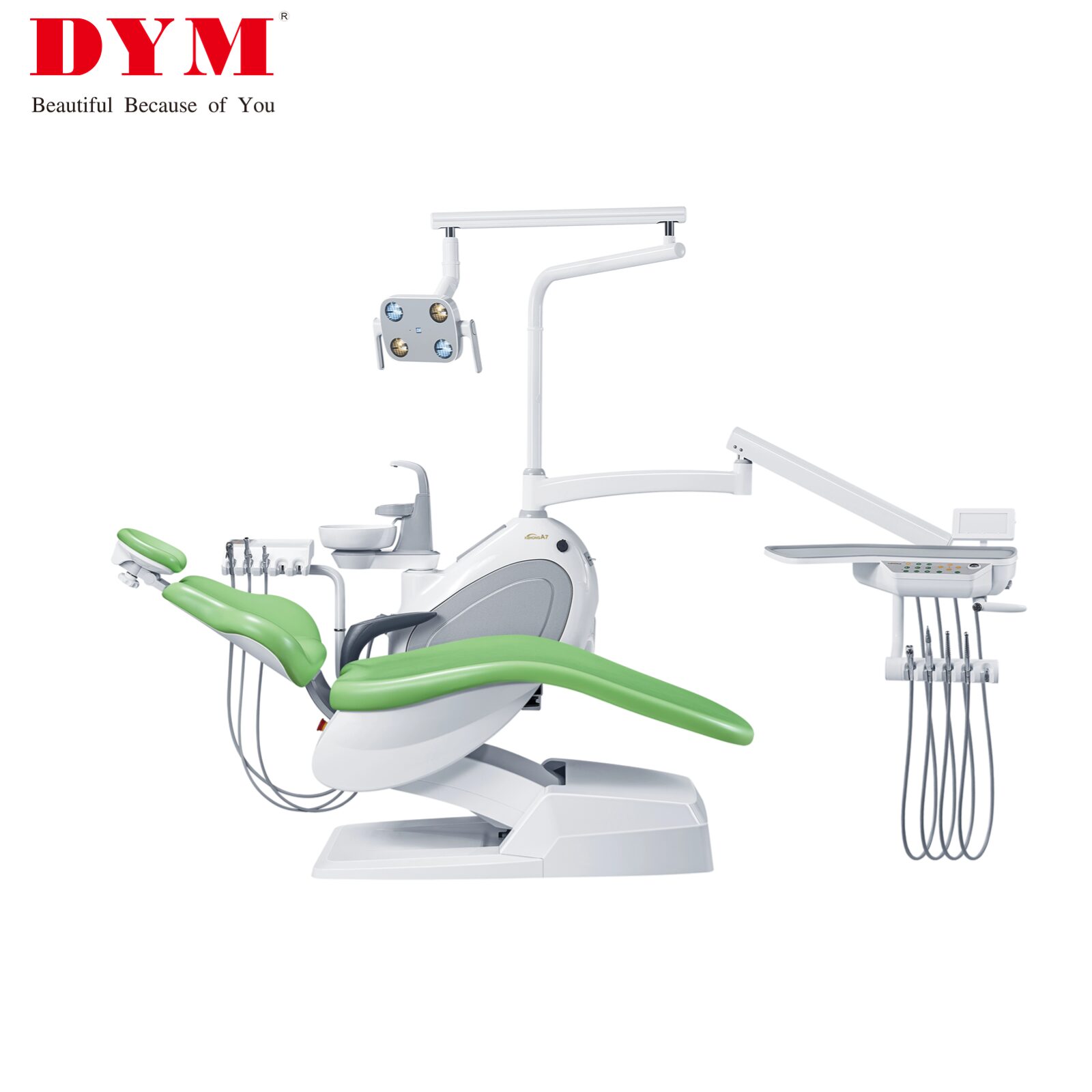

4.1 The metal frame and base are used as a whole, and the high-strength lifting arm has a strong sense of comfort
4.2 Height adjustable range: minimum: <420mm, maximum: >700mm
4.3 The base is made of high-strength 12mm thick A3 cold-rolled steel plate, which is durable
4.4 Cushion length: 116cm; the widest part of the cushion: 54cm; backrest height: 50cm; the widest part of the
backrest: 57cm

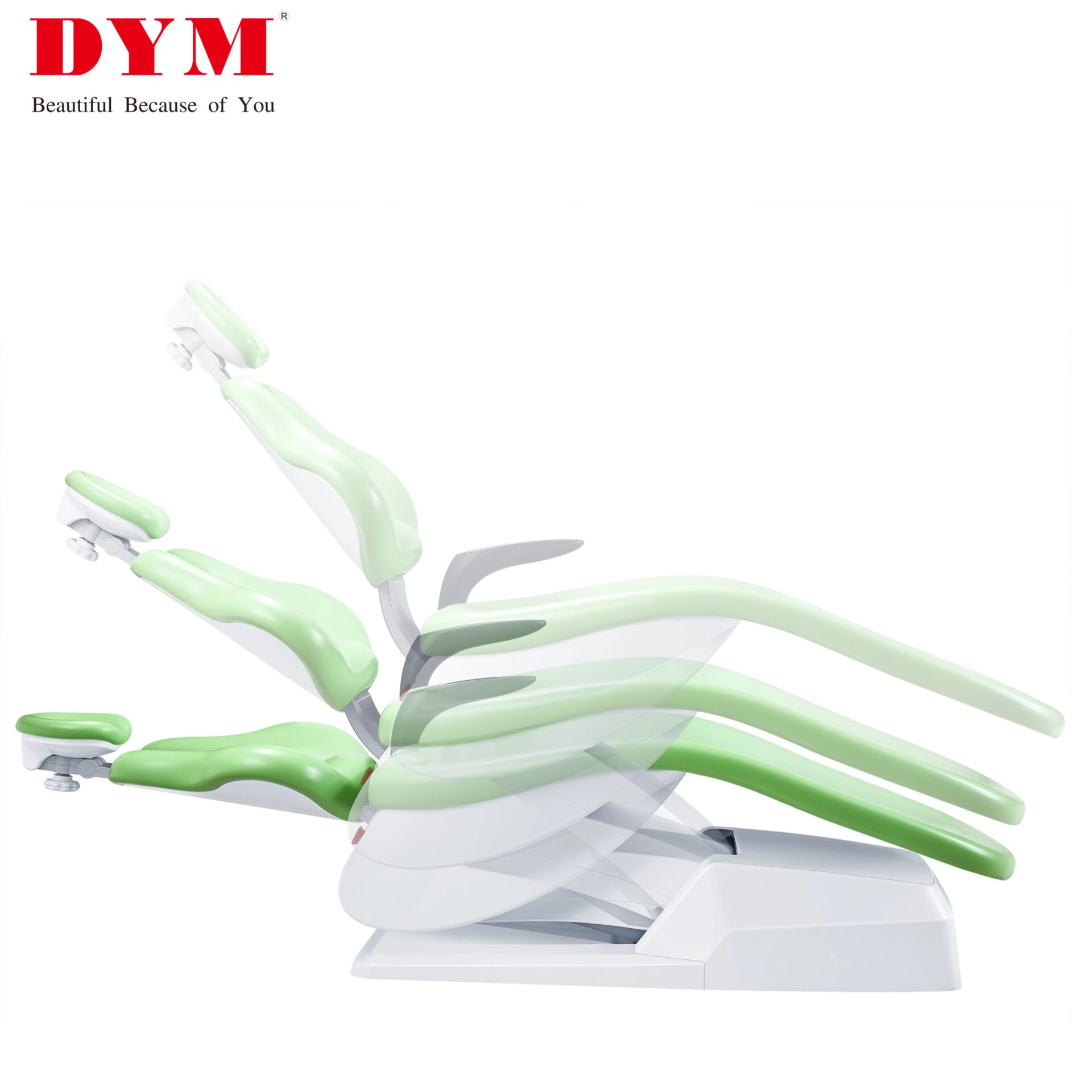

4.5 The seat linkage compensation function makes the patient more comfortable during operation
4.6 Environmentally friendly PU leather pad is used, which is anti-mildew and anti-bacterial, easy to clean and
disinfect
4.7 The Taiwan brand motor is safer, and the lifting and lowering of the dental chair is more gentle and comfortable
4.8 Dimensions: total length 1820mm*total width 920mm
4.9 The single armrest is convenient to support the hand, which is convenient for the elderly or patients with mobility
issues
4.10 The overall frame and base are made of metal, and the maximum load-bearing range of the seat is ≤180KG
4.11 Service life: ≥10 years
5.1 Bottom-hanging instrument tray: ABS injection molding process is adopted as a whole, and the large-area tool
table can place more instruments needed for treatment
5.2 Tool table: length: 70.5cm, width: 32cm; equipped with a three-way syringe with stainless steel handle
5.3 The design of the large card position makes it easier to put the dental handpiece into the hanger, which can
effectively prevent the handpiece from crashing
5.4 Independent water and gas control system, dual process treatment: two high and one low dental handpieces
are three independent water and gas control systems, which do not interfere with each other, compared with the
traditional control system, the three systems work independently, with uniform load and longer service life
5.6 Multi-function button panel, control patient chair movement, sputum flushing, water supply, film film viewing
light, oral light and other functions

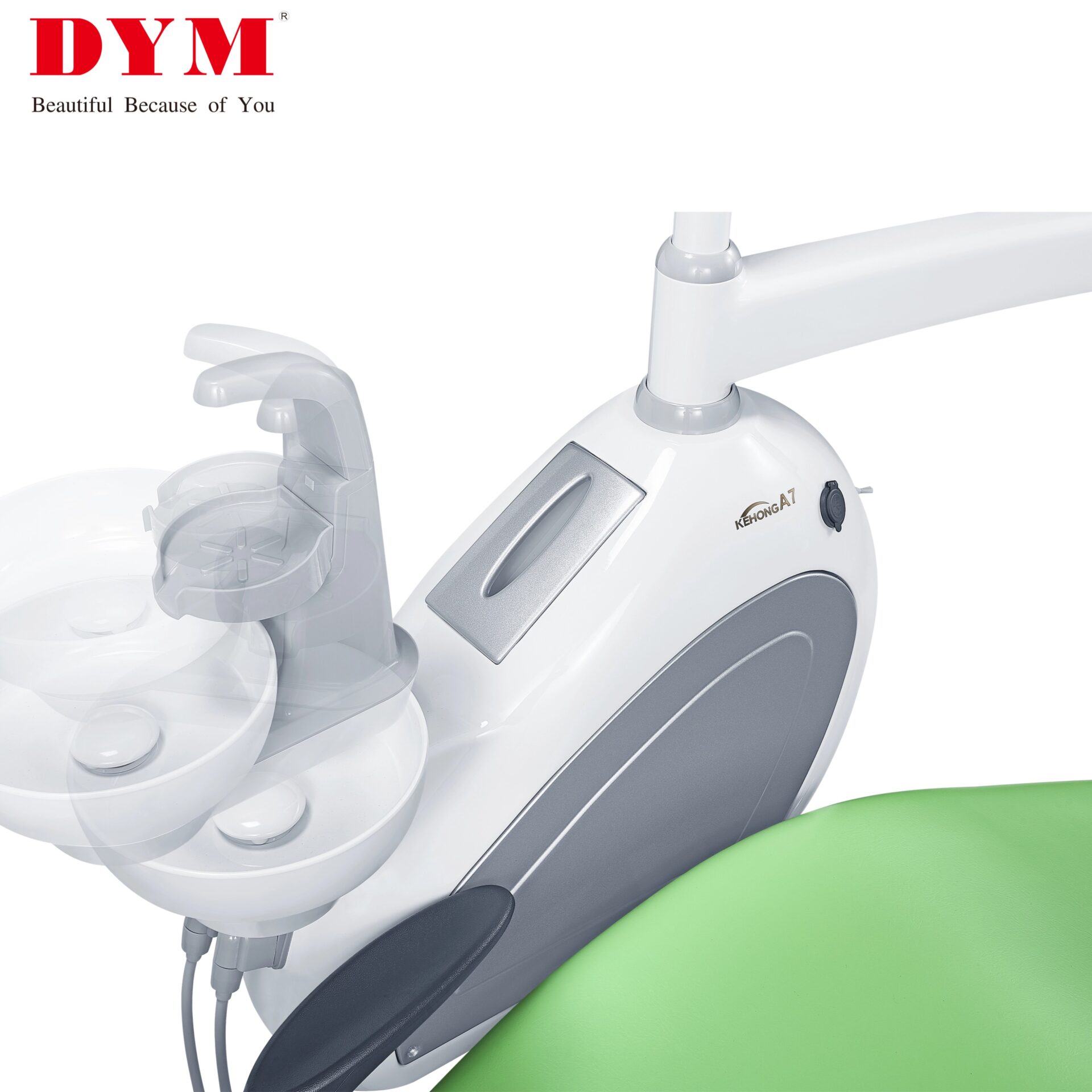

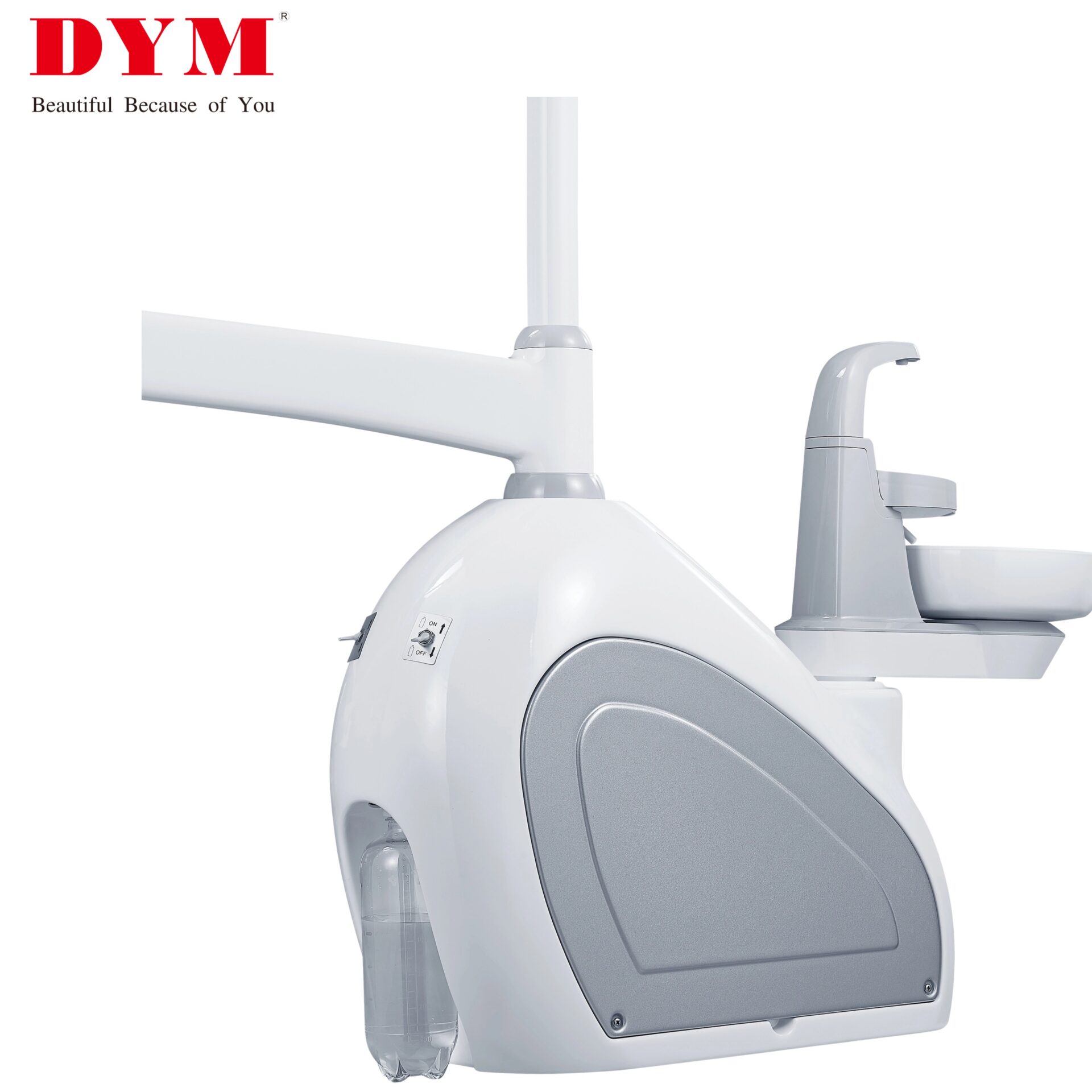

6.1 The rotatable spittoon is convenient for patients to spit, and the imitation porcelain material is detachable
for easier cleaning
6.2 The box shell is made of ABS engineering plastic material, which is beautiful and durable, and keeps the
environment inside the machine clean and tidy
6.3 The connecting head is small in force, light in weight, and strong in stability of the dental unit
6.4 The layout of water, gas and electricity is separated independently, the structure is clear, the side door of the
box is easy to open, and it is convenient for maintenance
6.5 Configure the mouthwash heating system with a water temperature of 40°C±5°C, equip with a water purification
system
6.6 The outlet of the sputum flushing tube is higher than the spittoon, which meets the standards of ISO and Food and
Drug Administration
6.7 Configure independent strong and weak suction system
6.8 600ml water storage bottle, thickened bottle mouth design, more durable, enlarged bottle mouth for easy filling
of pure water
6.9 Automatic constant temperature water heater (24V/80W)
6.10 Equipped with high-quality water and gas pipelines, the pipe is thicker, excellent resilience, high temperature and
high pressure resistance, strong frost resistance, and can recover quickly after bending. Excellent resistance to acid and
alkali corrosion, effective use for up to eight to ten years
6.11 Configure the USB charging interface
7.1 While satisfying the doctor’s long-term continuous work comfort, it incorporates multiple dental chair control functions
to reduce the chance of hands being contaminated by touching the device, improve work efficiency
7.2 Control dental handpiece working status, control independently handpiece water, control seat lift, control backrest to
front/back, control oral light switch and control water supply for water cup
8.1 Configure a three-way syringe with a stainless steel handle, configure a set of strong and weak suction handle
8.2 Configure the multi-functional assistant control panel, including spittoon control button, water supply control button,
treatment chair up and down movement button, treatment chair backrest front and back movement button, mouthwash
heating button, oral light switch button
9.1 Enclosed power supply, clear structure, in accordance with European safety standards, moisture-proof, dust-proof,
splash-proof, and electromagnetic interference-proof, exposed wires are in line with human body safety voltage
9.2 Automatic pressure relief to prolong the life of the pipeline
9.3 Moisture-proof and splash-proof, anti-electromagnetic interference, improve the durability of the power supply
of the whole machine
9.4 Built-in floor box design, the water, gas and electric unit is connected to the dental chair, hiding all pipelines,
clean and hygienic
10.1 Equipped with an ergonomically shaped doctor’s chair, which can be adjusted for chair up and down
10.2 The casters adopt silent large wheels, which are durable and not easy to break
10.3 The doctor’s chair lifting range: 490mm-610mm
