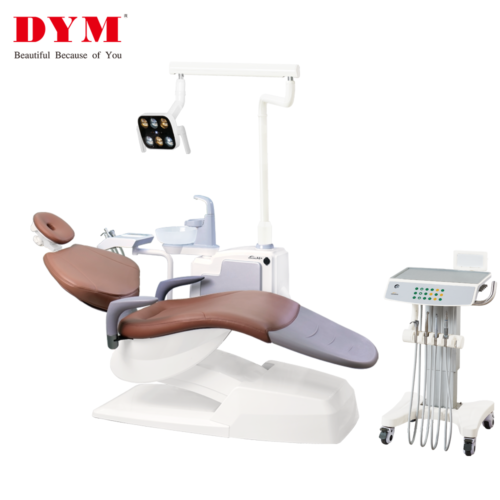

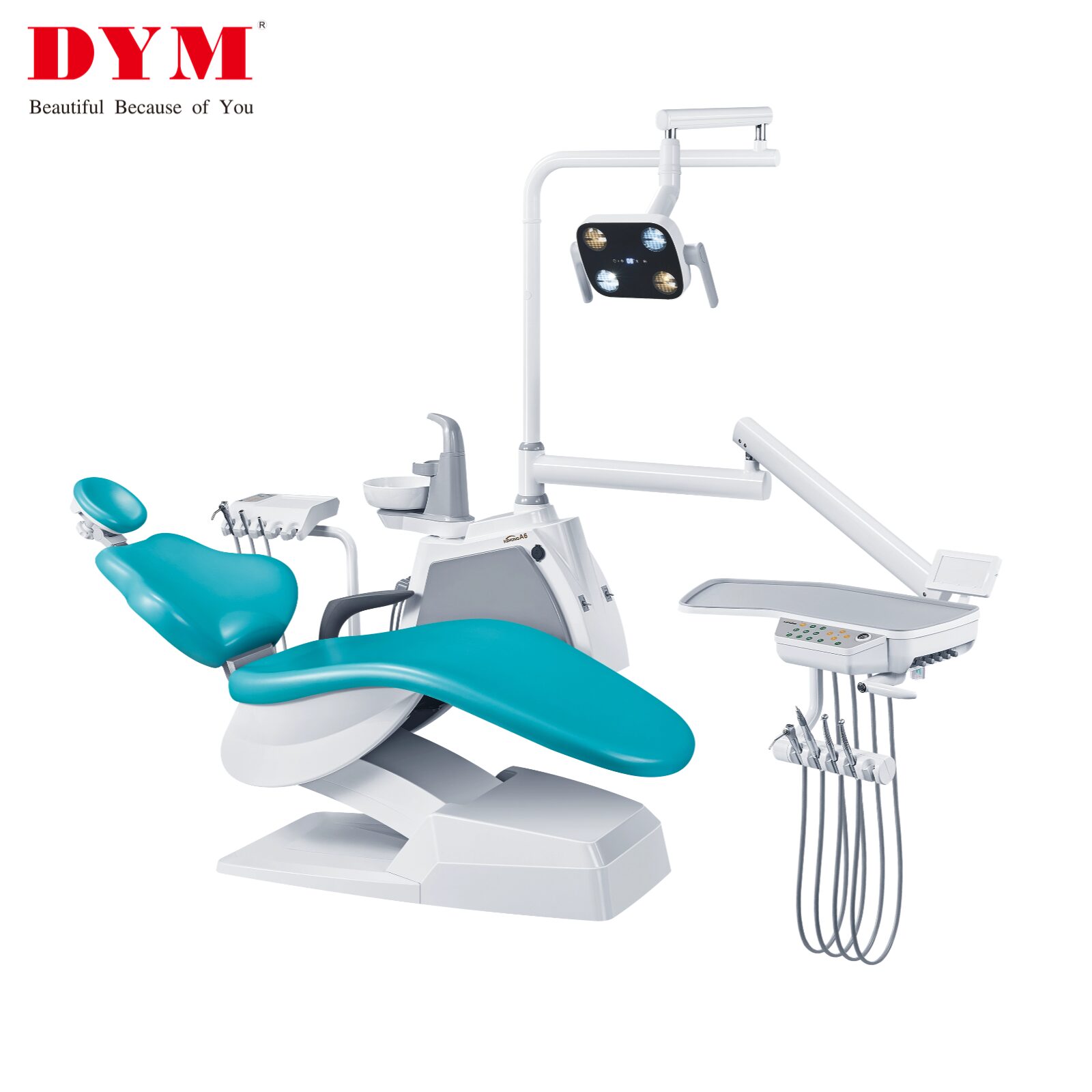

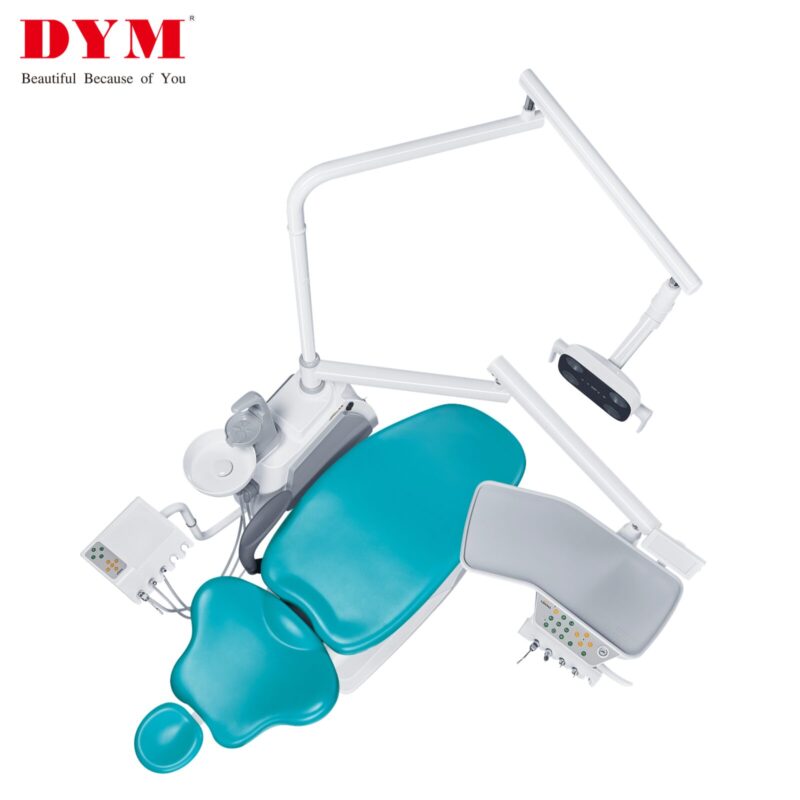

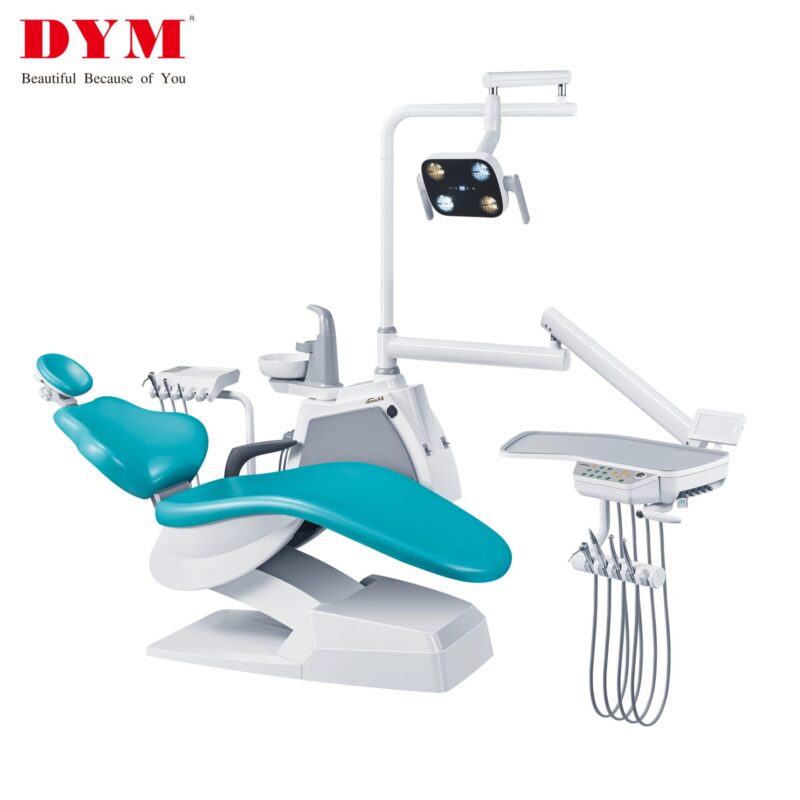

Comfortable PU cushion thicken chair frames dental treatment chair

Comfortable PU cushion thicken chair frames dental treatment chair

dental unit, pu cushion dental chair, foshan dental unit, economic dental chairs, suitable for dental clinics,

dental hospitals, dental training schools.

Standard Accessories



●Two years warranty,except cushion

●PU Cushion

●The headrest can be adjusted up and down

●USB Connection

●Corrosion resistance and high pressure resistance tubing

●Double plating valve

●Reflection Oral Lamp

●Removable spittoon

●Touching key

●Bigger instrument tray, it can put more instrument when operation

●Silent and stable Domestic Motor

●Electroplating and painting the chair frame, not easy to rust

●Assistant operating system,  independent operate

● Stainless steel spiral ,prevent rusting

●Emergency Switch

●Multifunction  stainless steel foot switch

●Three chair-Positions Memory





Removable Rotating Spitton

Assistant tray





1.Basic Technical Parameters of the Whole Machine

1.1 Rated voltage: AC AC220-240V

1.2 Frequency: 50Hz, Input power: 800VA

1.3 Air supply pressure range: 0.55—0.75Mpa, flow rate>50L/min

1.4 The pressure range of water source: 0.25—0.50Mpa, and the flow rate: ≥2.5L/min

1.5 Ambient temperature: 10°C-40°C

1.6 Relative humidity: 30% – 80%

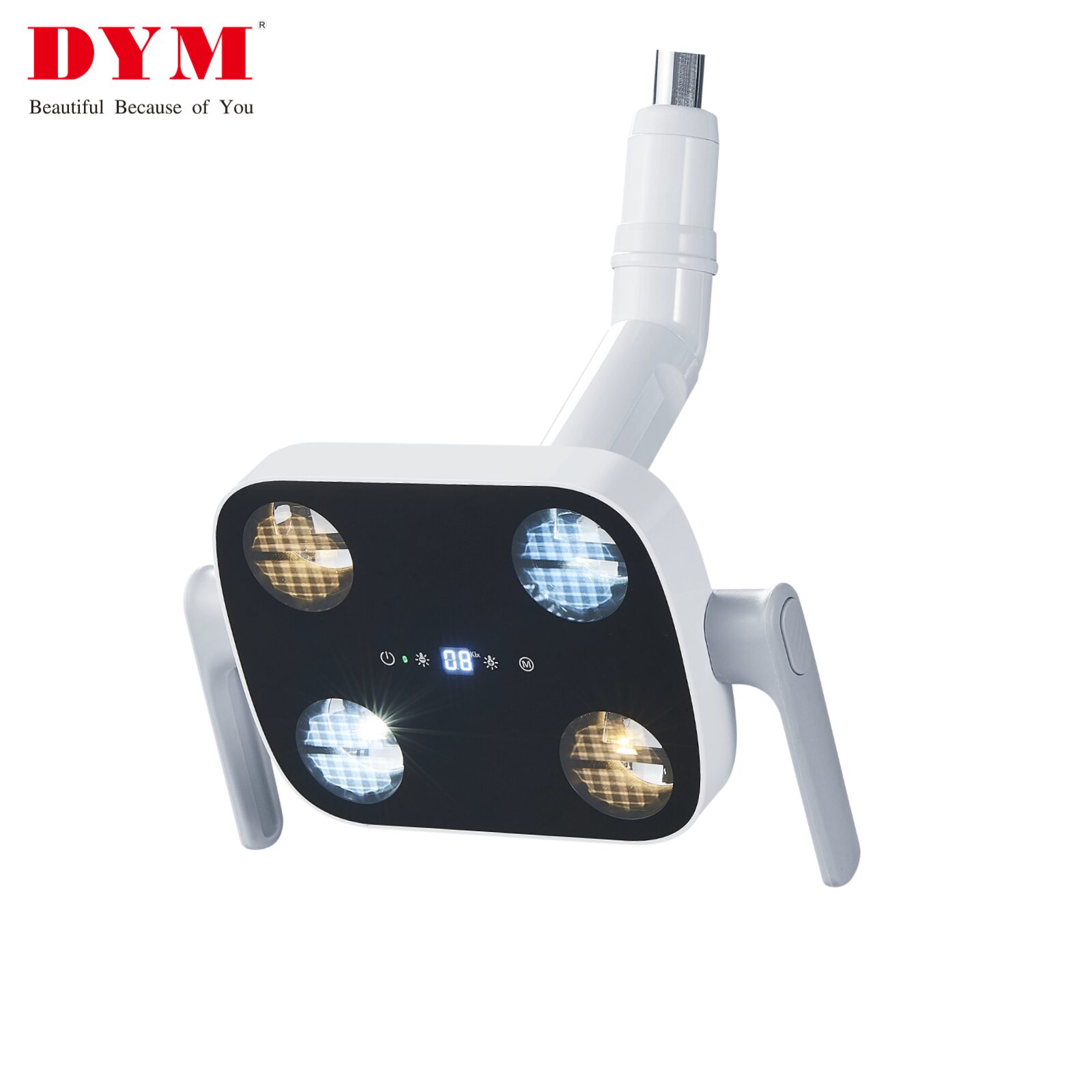

2.Intelligent Induction Anti-resin Curing Dental Light

2.1 4-hole induction LED light, induction stepless dimming, light anti-dizzy design, professional eye protection

2.2 Lighting intensity: 8000-25000 LUX, color rendering index Ra>90

2.3 Light color adjustment: yellow light/mixed light/white light

2.4 Power supply: AC 12-24V

3. Intelligent Control System

3.1 Fault alarm: If the electromagnetic valve in the equipment is disconnected or short-circuited, an alarm will sound

3.2 Emergency brake safety device: Equipped with an emergency brake switch, press the brake button to cut off the power

of the whole machine immediately

4. Comprehensive Treatment Chair

4.1 Height adjustable range: minimum: <420mm, maximum: >700mm

4.2 The base is made of high-strength thick 12mm A3 cold-rolled steel plate, which is durable

4.3 Use environmentally friendly PU leather cushion, which is anti-mildew and anti-bacterial, easy to clean and disinfect

4.4 Domestic brand motor, lifting and lowering the dental chair smoothly and comfortably

4.5 Dimensions: total length 1955mm*total width 965mm, the widest seat backrest: 620mm

4.6 The single armrest is convenient to support the hand, which is convenient for the elderly or patients with mobility issues

4.7 The overall frame and base are made of metal, and the maximum load-bearing range of the seat is ≤180KG

4.8 Service life: ≥10 years

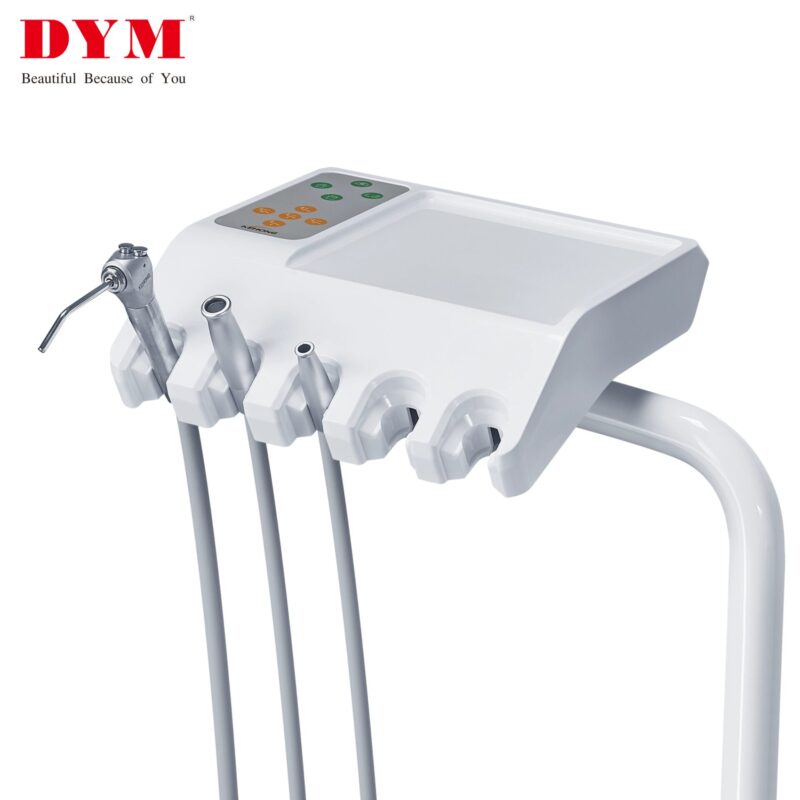

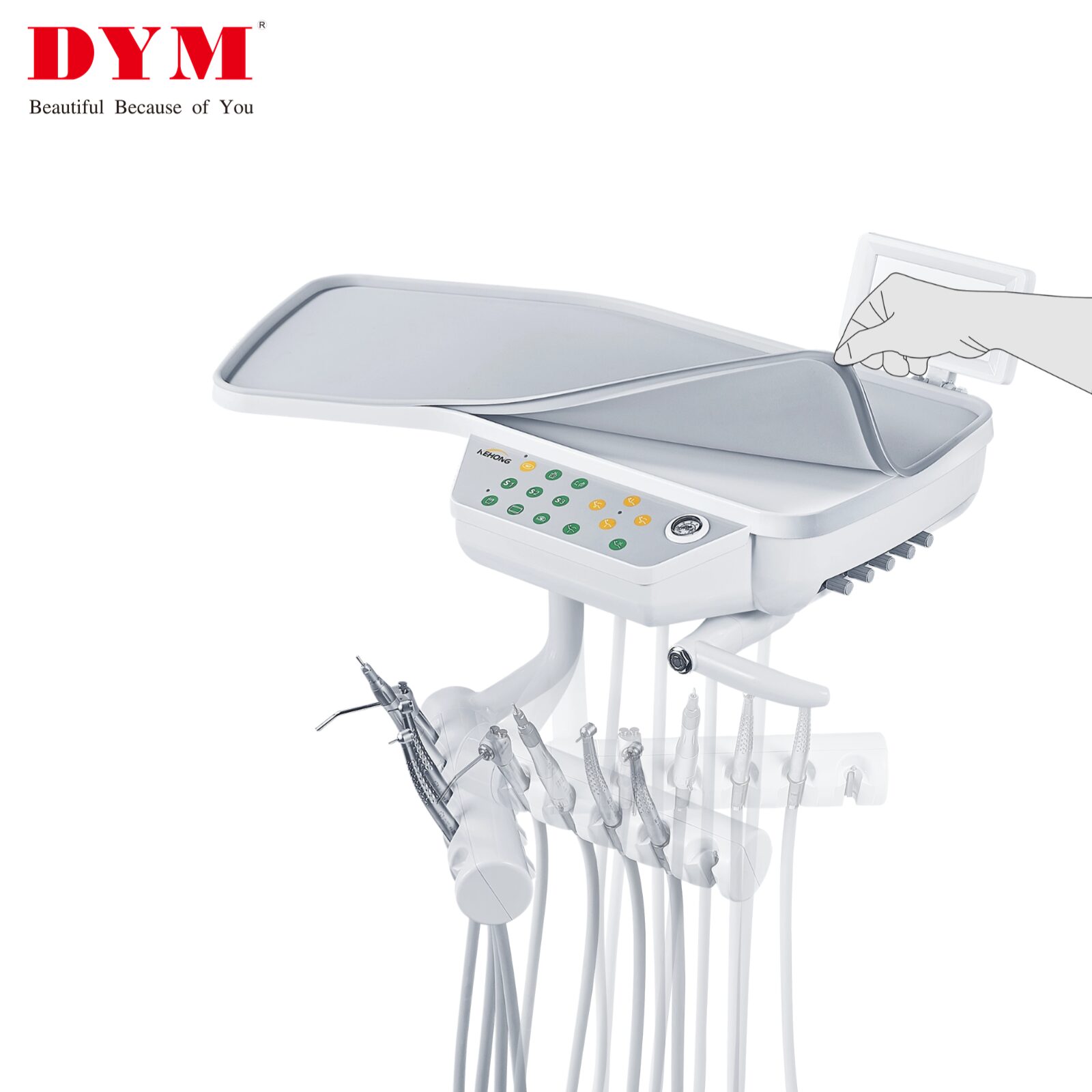

5. Instrument Tray

5.1 Bottom-hanging instrument tray: ABS injection molding process is adopted as a whole, and the large-area tool

table can place more instruments needed for treatment

5.2 Tool table: length: 70.5cm, width: 32cm; equipped with a three-way syringe with stainless steel handle

5.3 The design of the large card position makes it easier to put the dental handpiece into the hanger, which can

effectively prevent the handpiece from crashing

5.4 Independent water and gas control system, dual process treatment: two high and one low dental handpieces

are three independent water and gas control systems, which do not interfere with each other, compared with the

traditional control system, the three systems work independently, with uniform load and longer service life

5.6 Multi-function button panel, control patient chair movement, sputum flushing, water supply, film film viewing

light, oral light and other functions

6. Side Box Body

6.1 The rotatable spittoon is convenient for patients to spit, and the imitation porcelain material is detachable

for easier cleaning

6.2 The box shell is made of ABS engineering plastic material, which is beautiful and durable, and keeps the

environment inside the machine clean and tidy

6.3 The connecting head is small in force, light in weight, and strong in stability of the dental unit

6.4 The layout of water, gas and electricity is separated independently, the structure is clear, the side door of the

box is easy to open, and it is convenient for maintenance

6.5 Configure the mouthwash heating system with a water temperature of 40°C±5°C, equip with a water purification

system

6.6 The outlet of the sputum flushing tube is higher than the spittoon, which meets the standards of ISO and Food

and Drug Administration

6.7 Configure independent strong and weak suction system

6.8 600ml water storage bottle, thickened bottle mouth design, more durable, enlarged bottle mouth for easy filling

of pure water

6.9 Automatic constant temperature water heater (24V/80W)

6.10 Equipped with high-quality water and gas pipelines, the pipe is thicker, excellent resilience, high temperature

and high pressure resistance, strong frost resistance, and can recover quickly after bending. Excellent resistance to

acid and alkali corrosion, effective use for up to eight to ten years

6.11 Configure the USB charging interface

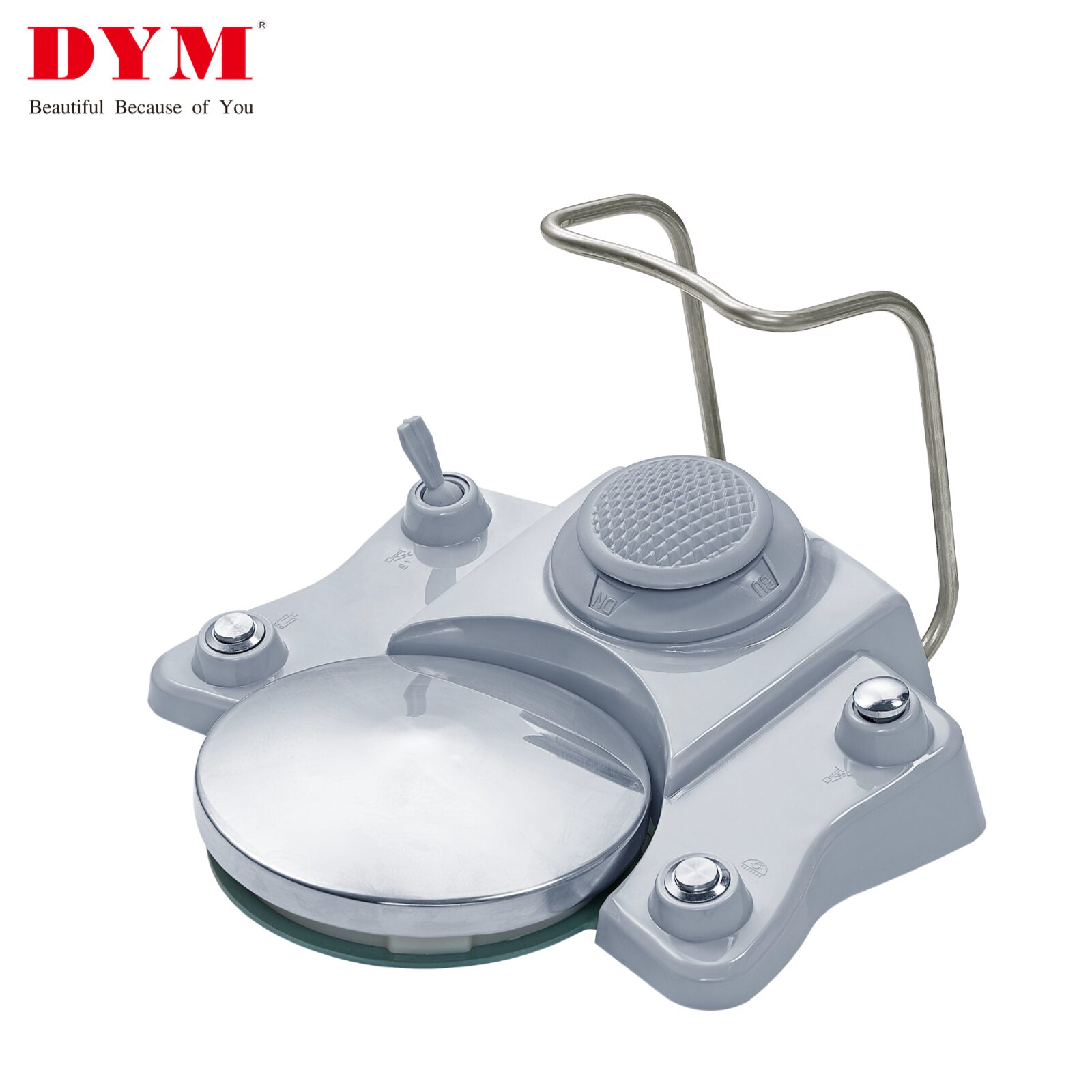

7. Multifunctional Foot Controller

7.1 While satisfying the doctor’s long-term continuous work comfort, it incorporates multiple dental chair control

functions to reduce the chance of hands being contaminated by touching the device, improve work efficiency

7.2 Control dental handpiece working status, control independently handpiece water, control seat lift, control

backrest to front/back, control oral light switch and control water supply for water cup

8. Multi-function Assistant Control Panel

8.1 Configure a three-way syringe with a stainless steel handle, configure a set of strong and weak suction handle

8.2 Configure the multi-functional assistant control panel, including spittoon control button, water supply control

button, water cup heating button, oral light switch button, treatment chair up and down movement button,

treatment chair backrest front and back movement button, reset button

9. Floor Box

9.1 Enclosed power supply, clear structure, in accordance with European safety standards, moisture-proof,

dust-proof, splash-proof, and electromagnetic interference-proof, exposed wires are in line with human body

safety voltage

9.2 Automatic pressure relief to prolong the life of the pipeline

9.3 Moisture-proof and splash-proof, anti-electromagnetic interference, improve the durability of the power

supply of the whole machine

9.4 Built-in floor box design, the water, gas and electric unit is connected to the dental chair, hiding all pipelines,

clean and hygienic

10. Doctor Chair

10.1 Equipped with an ergonomically shaped doctor’s chair, which can be adjusted for chair up and down

10.2 The casters adopt silent large wheels, which are durable and not easy to break

10.3 The doctor’s chair lifting range: 490mm-610mm
